Here’s a few shots of one of our recent storage server builds:

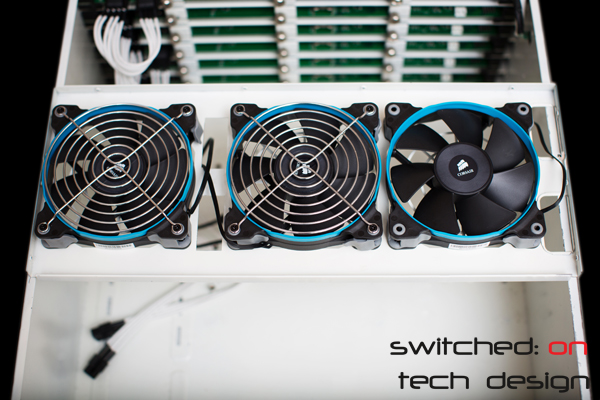

Adding in the fan grilles (prevents SAS or power cables from fouling the fan blades):

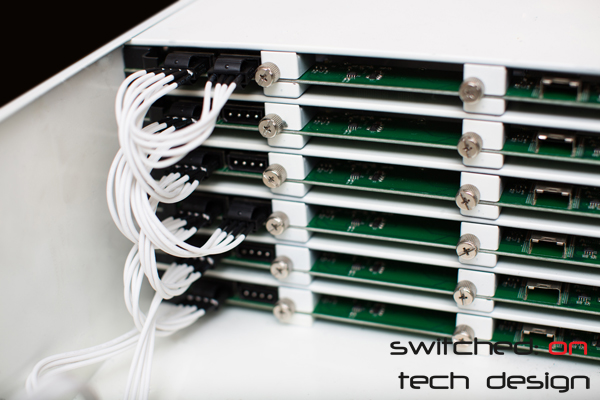

Some power cables connected to check the positioning in relation to the fan blades (not connected in a sensible order, before anyone comments…):

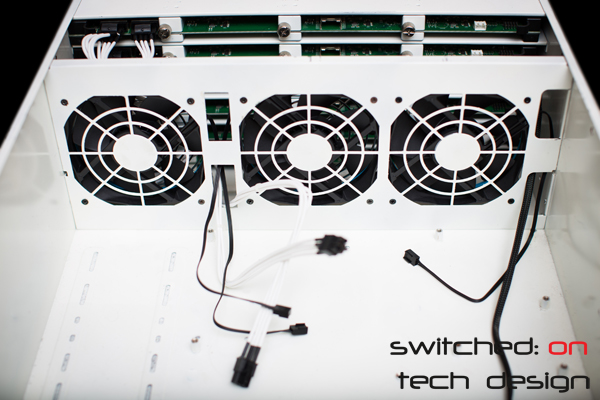

Fan wall in place:
CPU socket – Intel Xeon E5-2630s used here:
That’s all for now!
