Proper mounting of Corsair AF120 or SP120 coloured rings



Can’t get your coloured ring to sit properly on your new Corsair fan? You’re not alone – we’ve had a few customers find it difficult getting their rings to sit correctly in the fans.







Click through to see the solution.



If you can’t get your coloured rings flush, start off by looking at the fans without the rings on and you’ll see little mounting holes in the corners:

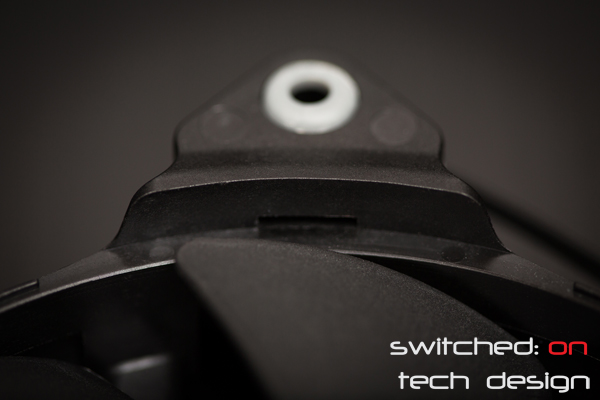

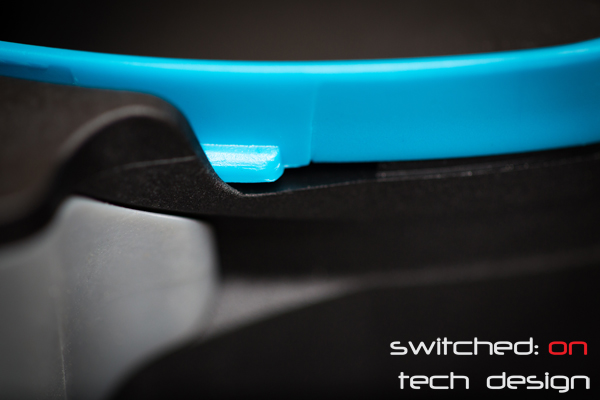

In this shot the little hole is directly in line between the grey rubber grommet and the fan blade. The tab on the coloured ring should snap into place with a little bit of work – it shouldn’t look like this:



…where the tab is just to the side of the hole. A correctly mounted colour ring should sit flush the whole way around.

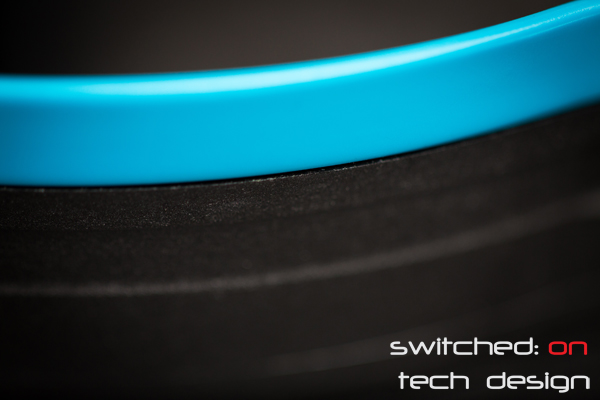

Right:





Wrong:





Corner, right:



Wrong:





Hope that helps!
